03 Smoker Panel Page

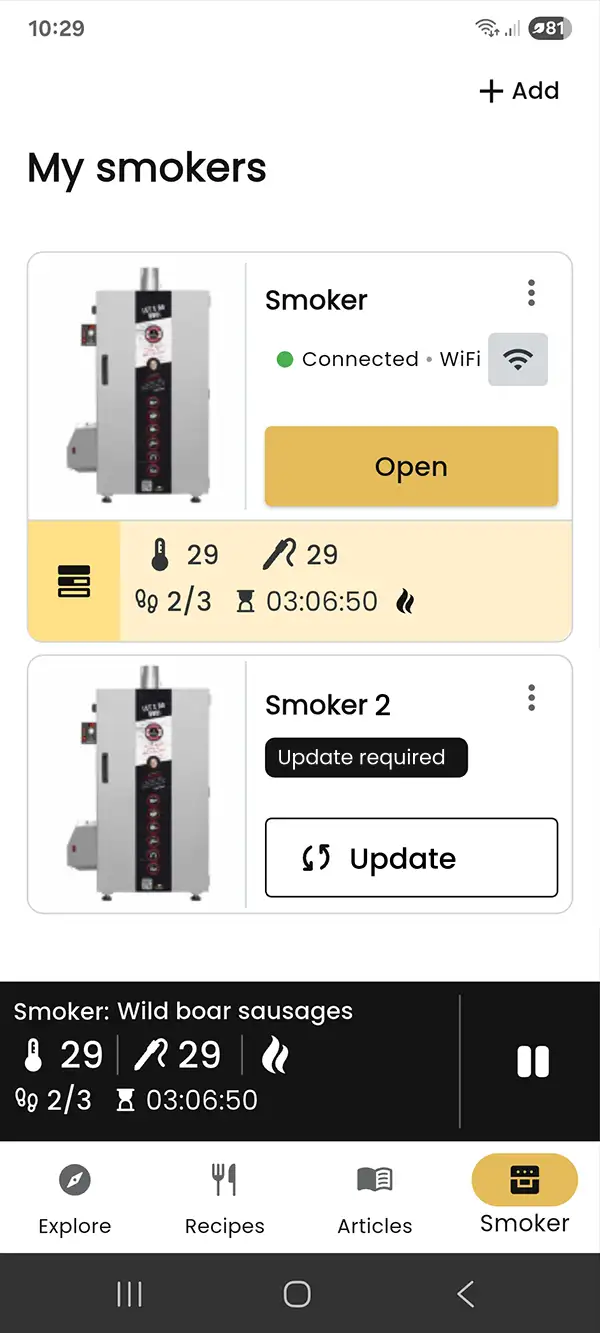

Smoker panel – device list Smoker panel – status bar

03.01 + Add

The "Add" button lets you add a new device to the app.

Add

03.02 Connection status information

  • Wi-Fi – The app is connected to the smoker over a local network.
  • Cloud – The app is connected to the smoker via the cloud.
Connection

03.03 Smoker window menu

  • Smoker information
  • Load saved programs (feature in development)
  • Edit smoker name
  • Refresh – update the smoker’s status
  • Disconnect – remove the device from the list (to make the smoker forget your network, reset the control panel)
Information

03.04 Update required

When the update icon appears, update the smoker to be able to use device control.

Update

During the update, the display on the control panel will show "UPdt" – after a successful update, the panel will restart automatically.

UPdt

03.05 Status bar icon descriptions

Manual modeManual mode
Automatic modeAutomatic mode
Chamber temperatureChamber temperature
Probe temperatureProbe temperature
Smoke generator onSmoke generator on
Dryer onDryer on
Step1/3 – Step of the program in automatic mode
Remaining step timeRemaining step time in automatic mode
Time to endTime to end of program in automatic mode
StopStop – smoker operation stopped

03.06 Smoker status preview

Automatic mode – displays all current parameters, time, and program step.

Automatic mode

Manual mode – displays user-set parameters.

Manual mode

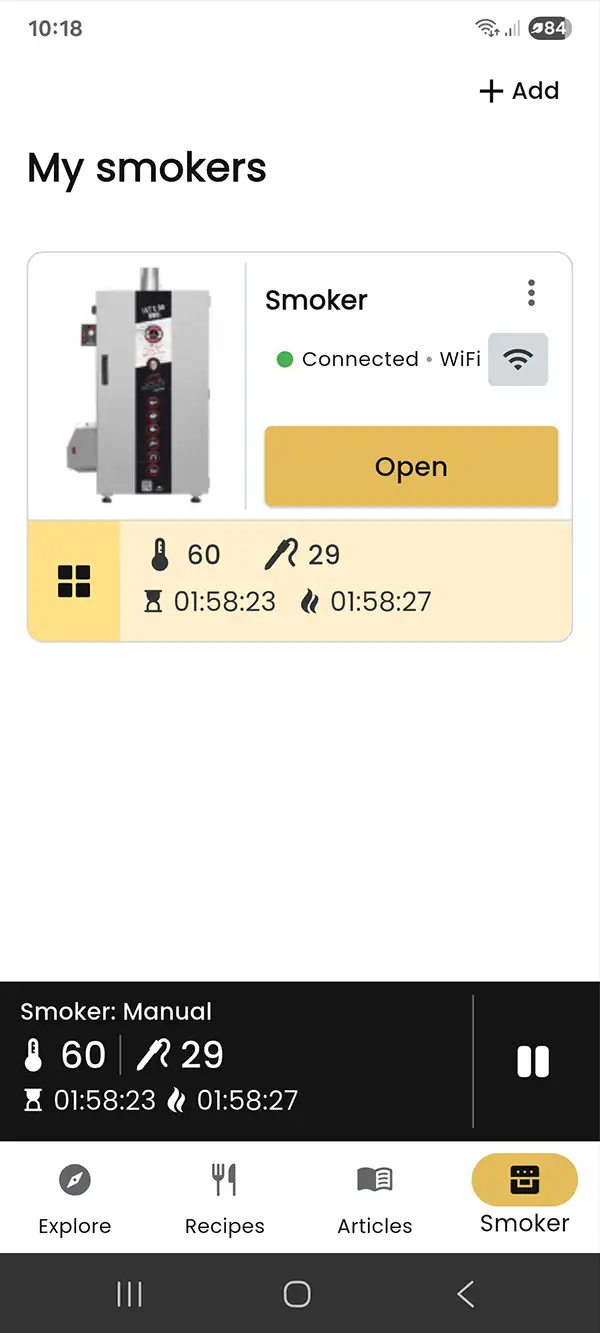

03.07 Smoker status preview in work mode

After switching on the smoker, a status preview of the device will appear above the bottom bar.
The preview is available on every card. You can switch between device previews by swiping left or right.

Status preview
